E14 lamp cap gauge | Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact
- Product Details
- Inquiry
Product Description

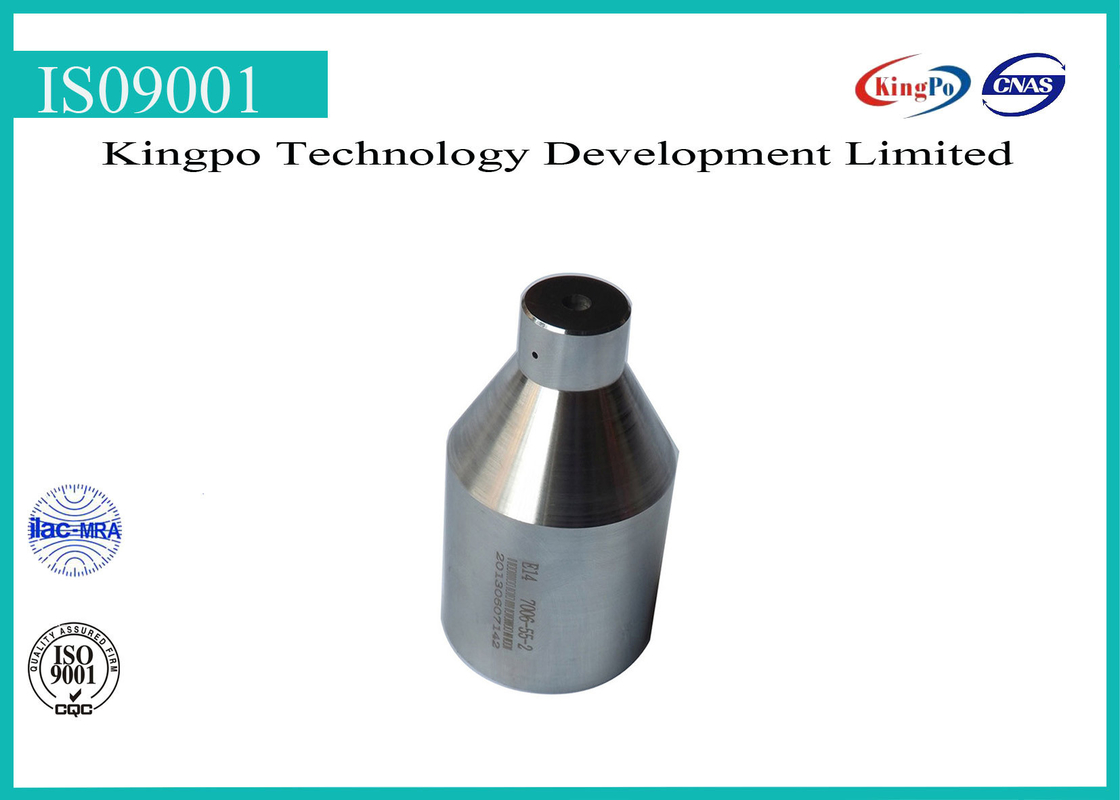

E14 lamp cap gauge | Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact E14-7006-55-2
Purpose: to check protection against accidental contact.

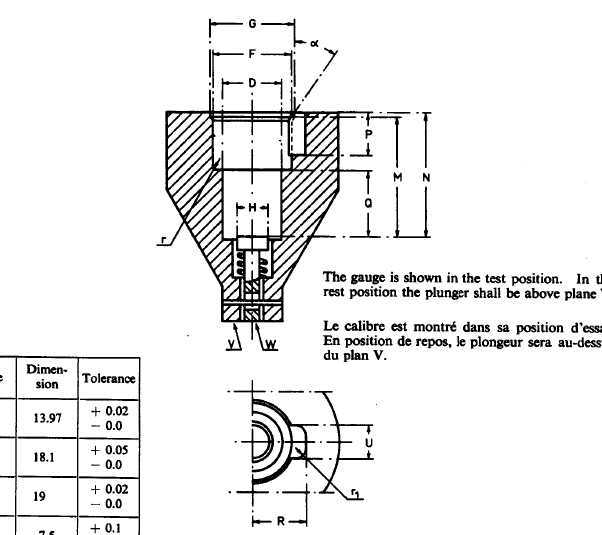

Testing: the shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.
| “NOT GO” GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-28B-1 |
| “GO”GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-27F-1 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING CONTACT-MAKING, Cód. 7006-54-2 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT, Cód. 7006-55-2 |
| “GO”GAUGE FOR DIMENSION”S1” OF E14 CAPS ON FINISHED LAMPS, Cód. 7006-27G-1 |
