E14 lamp cap gauge | Not go gauge for E14 caps on finished lamps | 7006-28B-1
- Product Details
- Inquiry
Product Description

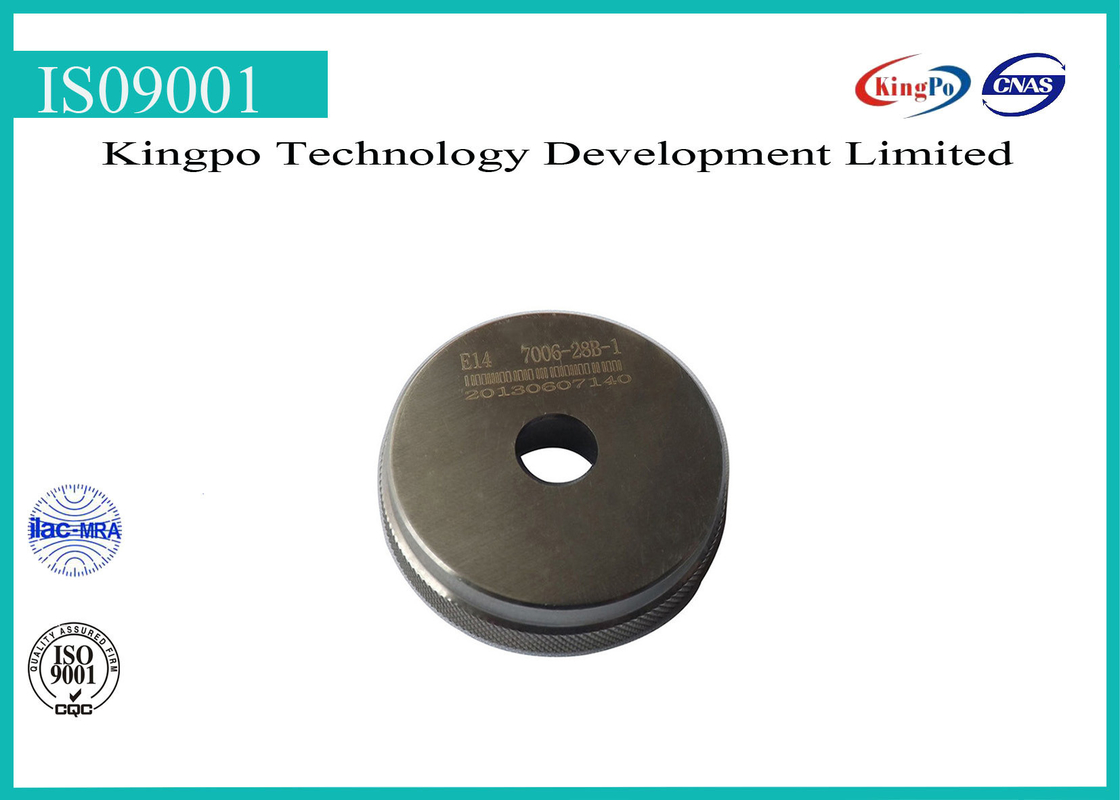

E14 lamp cap gauge | Not go gauge for E14 caps on finished lamps | 7006-28B-1

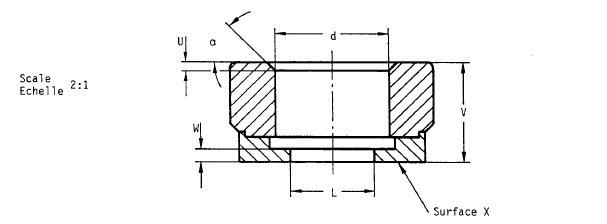

Purpose: to check the minimum outside(major) diameter of the screw thread, dimension d, of E14 caps on finished lamps.
Testing: when the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
| “NOT GO” GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-28B-1 |
| “GO”GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-27F-1 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING CONTACT-MAKING, Cód. 7006-54-2 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT, Cód. 7006-55-2 |
| “GO”GAUGE FOR DIMENSION”S1” OF E14 CAPS ON FINISHED LAMPS, Cód. 7006-27G-1 |
