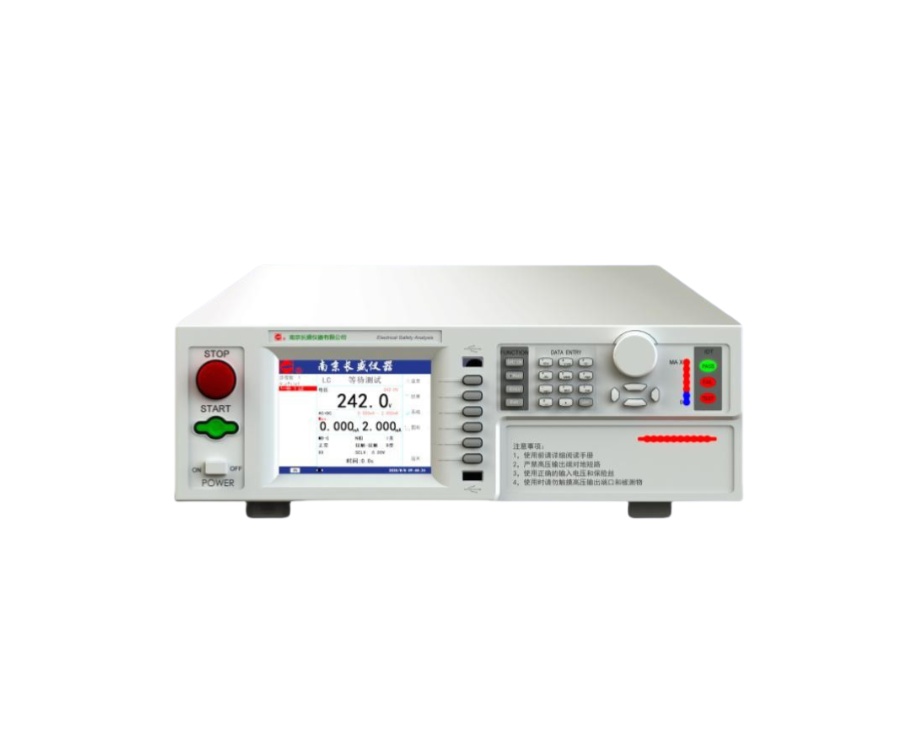

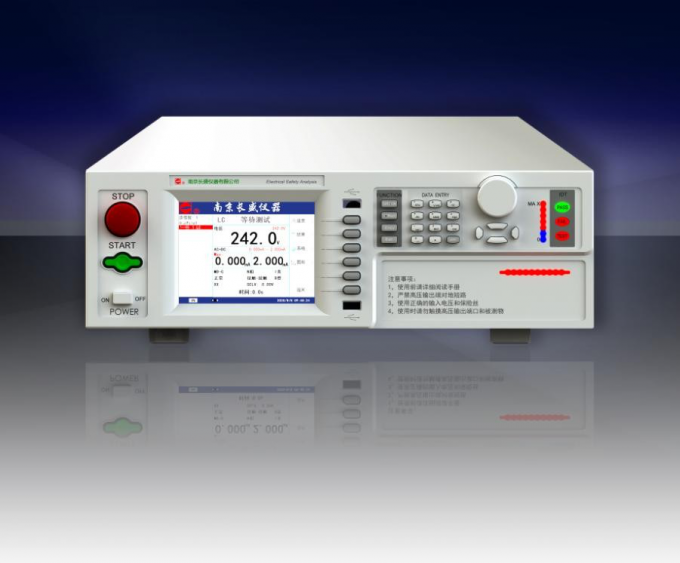

IEC60601 Programmable Leakage Current Tester

Power:	Electronic,Hydraulic,AC 1 Phase 220V 50Hz 500W	Usage:	Auto Testing Machine,Drop Test Equipment,Plastic Testing Machine
Product Name:	International Standards ASTM D3574 PU Foam IFD Testing Equipment	Weight:	13kg
Highlight:	Programmable Leakage Current Tester IEC60601 Leakage Current Test Equipment Programmable Leakage Current Measurement Device

Power:

Electronic,Hydraulic,AC 1 Phase 220V 50Hz 500W

Usage:

Auto Testing Machine,Drop Test Equipment,Plastic Testing Machine

Product Name:

International Standards ASTM D3574 PU Foam IFD Testing Equipment

Weight:

13kg

Highlight:

Programmable Leakage Current Tester

IEC60601 Leakage Current Test Equipment

Programmable Leakage Current Measurement Device

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

Use 5.6 inch TFT (640*480) to display the setting parameters and test parameters, and the display content is eye-catching and rich;
 The tester can store the test results in the format of EXCEL table in U;
 Software can be upgraded through U disk;

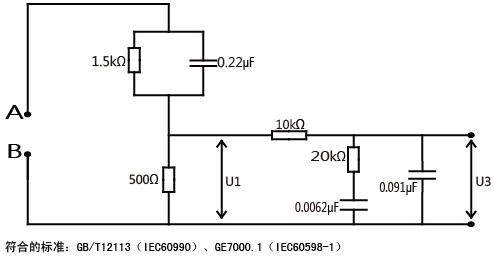

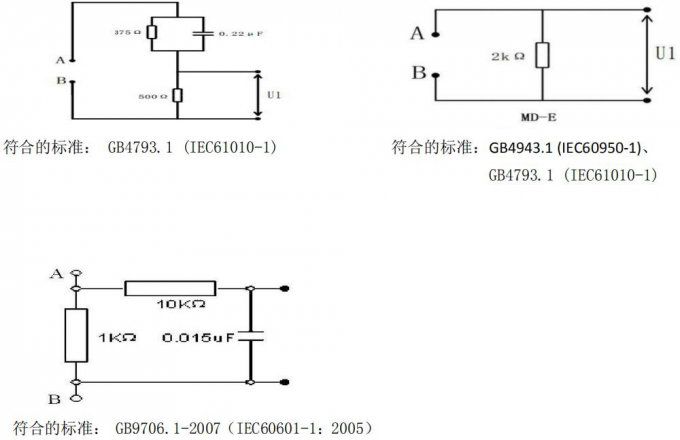

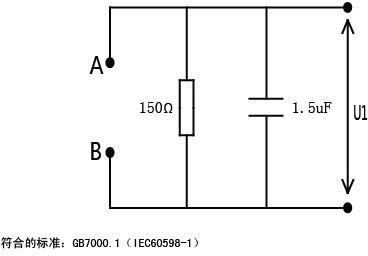

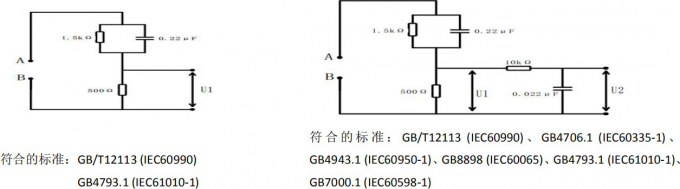

 Compliance leakage current test Human body network: GB9706.1(IEC60601-1)/GB4793.1(IEC61010-1)/GB4706.1(IEC60335-1)/GB4943.1(IEC60950-1)/
GB8898(IEC60065)/GB7000.1(IEC60598-1)/GB/T12113(IEC60990) standard;
Leakage current provides four detection methods of AC, AC+DC, PEAK, DC;
Provide auxiliary power supply required for medical equipment testing;
Bilingual operation interface in Chinese and English to adapt to the needs of different users;
 Support keyboard lock operation to prevent irrelevant personnel from modifying test parameters;
Support conversion between test files, explanation: when there are many test steps, you can distinguish by file name, which is convenient for parameter adjustment in the later period;
Can be equipped with CS26045Y test box to realize multi-point scanning test;
Support scan code gun function;
 Standard PLC interface, RS232 interface, optional LAN interface, RS485 interface, USB interface. IEC60601 Programmable Leakage Current Tester 0

IEC60601 Programmable Leakage Current Tester 0

IEC60601 Programmable Leakage Current Tester 1

IEC60601 Programmable Leakage Current Tester 2

IEC60601 Programmable Leakage Current Tester 3

IEC60601 Programmable Leakage Current Tester 4

Model				CS9975-SIW
Leakage current	voltage	range		30.0V～300.0V
		Precision		±(2％ reading +2V)
		Resolution		0.1V
	Maximum external isolated power supply			6000VA
	Current gear			20uA, 200uA,2mA,20mA
	Detection method			AC,RMS,PEAK,DC
	Current upper limit setting			00.1uA～20.00mA
	Current lower limit setting			00.0uA ～Current upper limit
	MD Human Network			GB9706.1(IEC60601-1)	GB4793.1(IEC61010-1)/ GB4706.1(IEC60335-1)/ GB4943.1(IEC60950-1)/ GB8898(IEC60065)/ GB7000.1(IEC60598-1)/ GB/T12113(IEC60990)
	Voltage rise time			Can not be set
	testing time			(0.0, 0.3～999.9)s 0=continuous test
	Intervals			(0.0～999.9)s 0=interval time off
Leakage current meter	Measuring range			00.0uA ～ 20.00 mA
	Resolution			20 uA 档:0.1uA,200 uA 档:0.1uA,2mA 档:1uA,20mA 档:10uA
	measurement accuracy		AC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			DC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			AC+DC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			PEAK	I≥50 uA ±(2%rdg+2%fs)
Leakage voltage meter	range			30.0V～300.0V
	Precision			±(2%+2V)
	Resolution			0.1V
	Display value			Root mean square
Timing Device	range			0～999.9s
	Resolution			0.1s
	Precision			±(1%+50ms)
Memory group				30
Test step				99
Input power supply voltage				220V±10%,50Hz
Import the memory file to the U disk, and export the U disk to the instrument				support
Export storage results to U disk				support
Standard interface				RS232 interface, PLC interface
