AUX0025 Low Pass Passive Filter Filter Out Clutter Interference In The Test Line To Ensure True Test Signal
- Product Details
- Inquiry

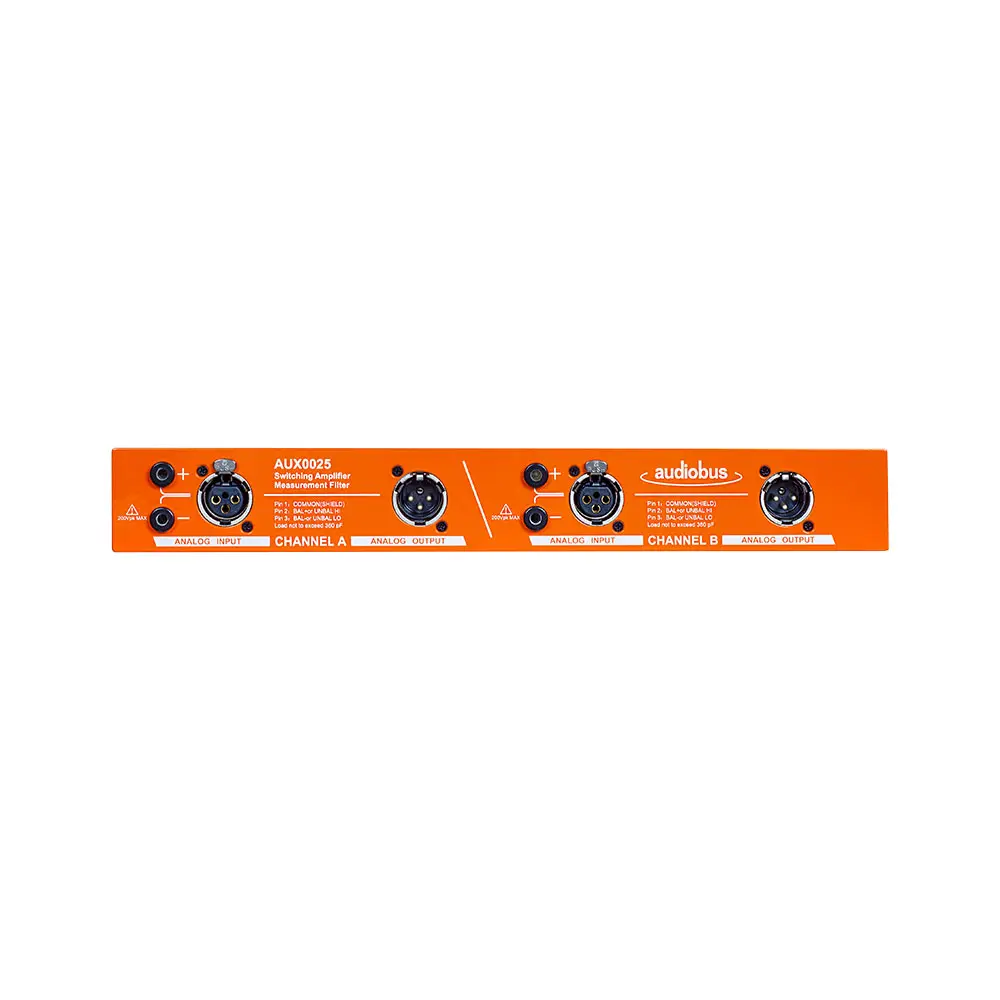

Dual-channel multi-pole LRC passive filter has flat frequency response, extremely low insertion loss, and steep high-frequency filtering characteristics. The input interface supports XLR (XLR) and banana sockets.When testing electrical performance products such as PCBA and Class D power amplifiers, it can effectively filter out clutter interference in the test line to ensure true test signal.
Performance Parameters
| Equipment Performance | |
| Number Of Channels | 2 In 2 Out, 2 Channels |
| Frequency Response | ±0.05dB, 10Hz ～ 20kHz _ |
| Insertion Loss | ＜ 0.05dB |
| High Frequency Suppression | > 50dB, 250kHz ~ 20MHz |
| Maximum Input | 200 Vpeak |
| Crosstalk | ＞ 90dB @ 20kHz |
| Harmonic Distortion | < -110dB |
| Intermodulation Distortion | < -100dB |
| Equipment Specifications | |
| Working Temperature / Humidity | 0～40℃ , ≤80%RH |
| Dimensions ( W×D×H ) | 340mm×210mm×55mm |
| Weight | 2kg |
