AUX0028 Low Pass Passive Filter Provide Pre-Processing Signal To D-Level Amplifier
- Product Details
- Inquiry

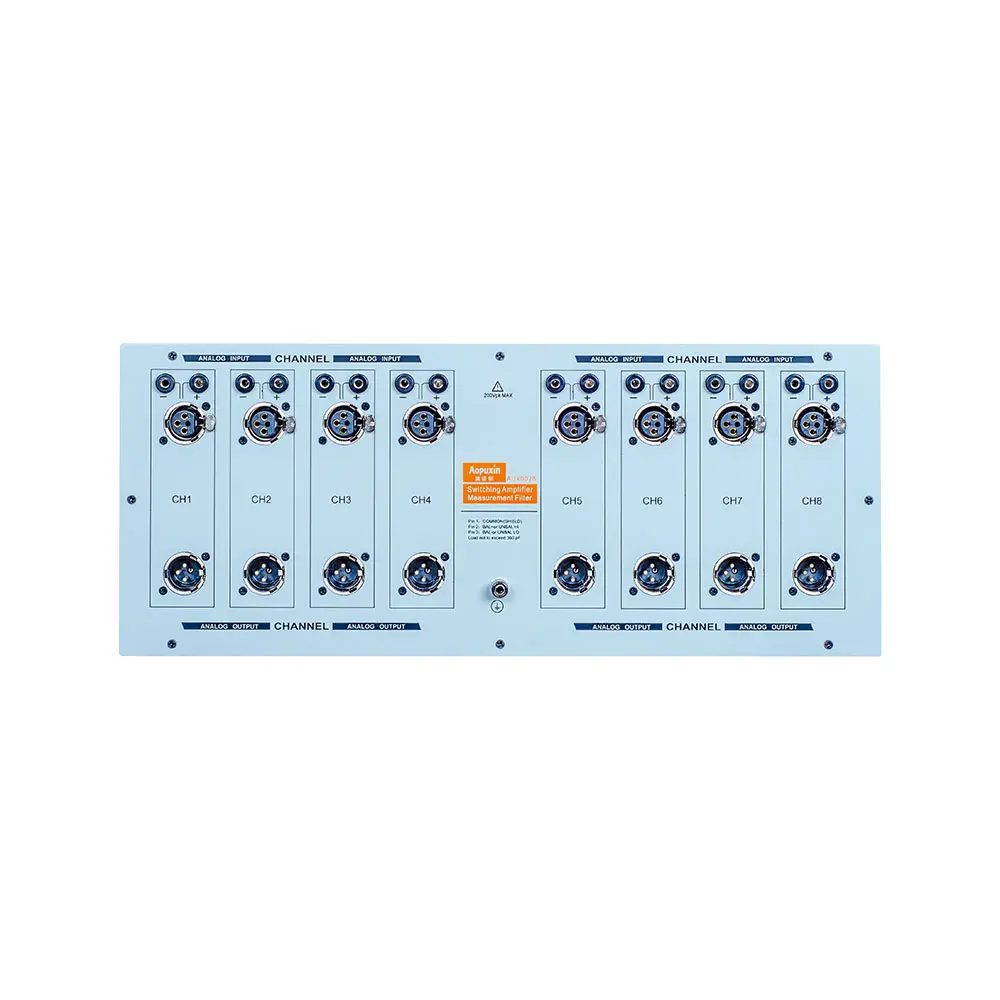

AUX0028 is an eight-channel low-pass passive filter that can provide pre-processing signal to D-level amplifier. It has the characteristics of passband of 20Hz-20kHz, very low insertion loss and steep high-frequency filtering.In the testing of electrical performance products such as PCBA and Class D power amplifier, it can effectively filter out clutter interference in the test line to keep the fidelity of test signal
Performance Parameters
| Performance | |
| Number Of Channels | 8-Channel Balanced Interface , 8 In 8 Out |
| Interface Type | XLR/Banana Socket |
| Insertion Loss | < 0.05dB |
| High Frequency Suppression | >50dB, 250kHz ～ 20MHz |
| Maximum Input | 200 Vpk |
| Crosstalk | >100dB |
| Harmonic Distortion | < -110dB |
| Intermodulation Distortion | < -100dB |
| Frequency Response | ±0.05dB, 10Hz ～ 20kHz _ _ |
| Equipment Specifications | |
| Working Temperature / Humidity | 0～40℃ , ≤80%RH |
| Dimensions ( W×D×H ) | 440mm×275mm×185mm |
| Weight | 2kg |
